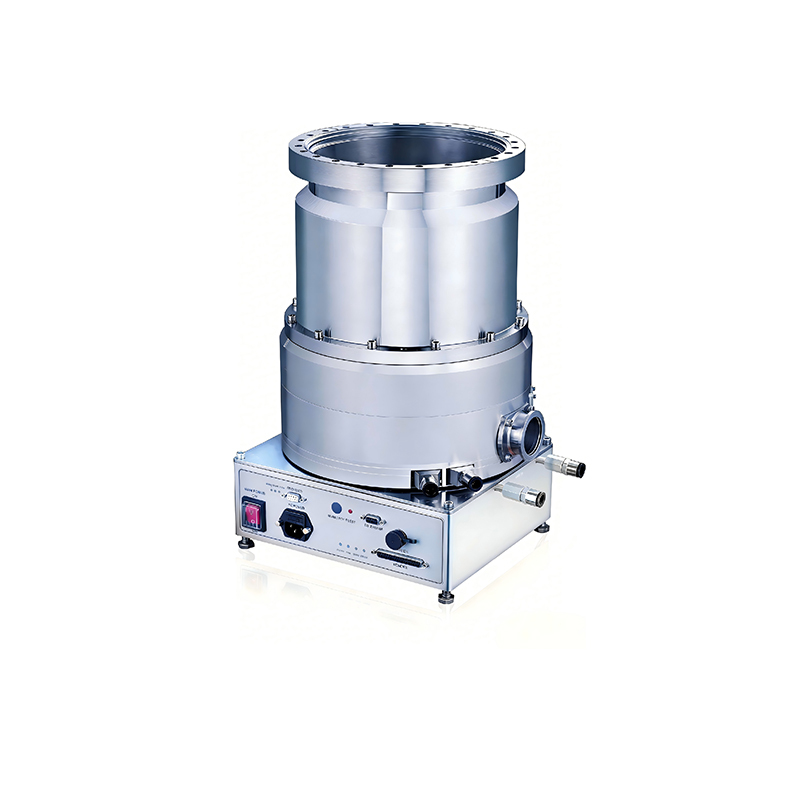

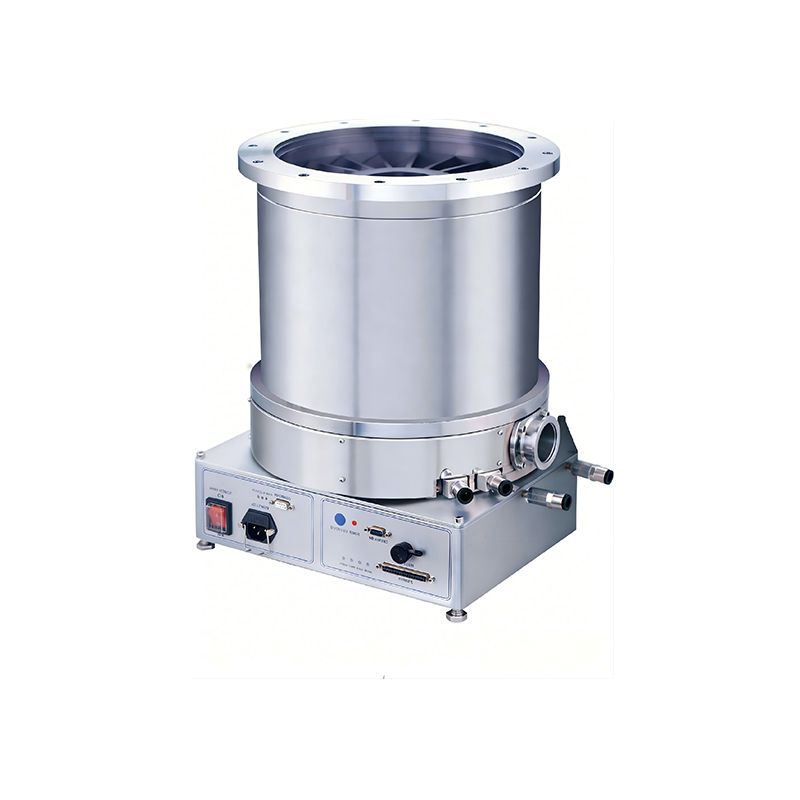

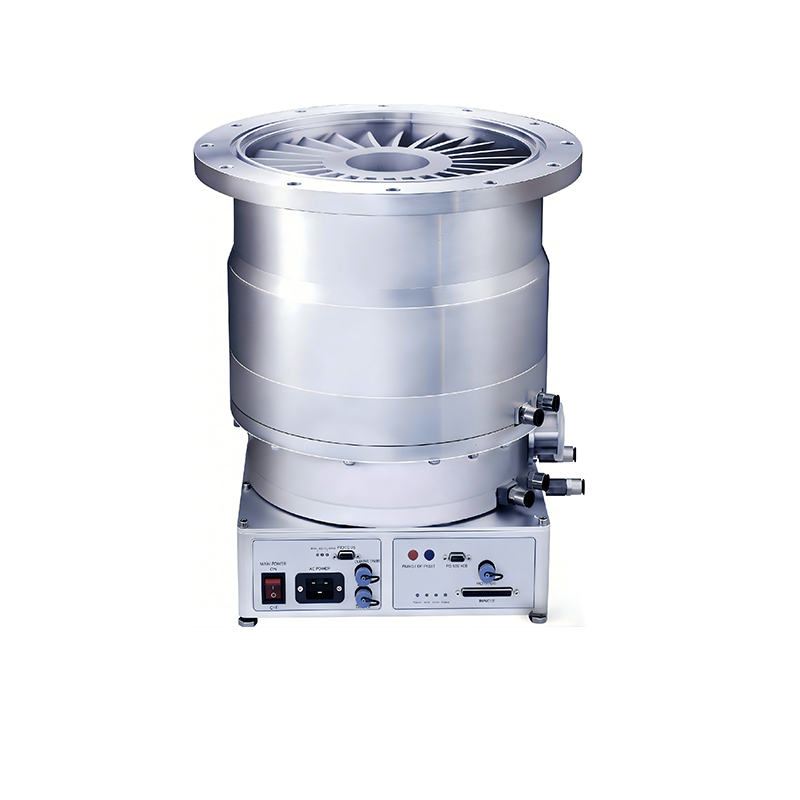

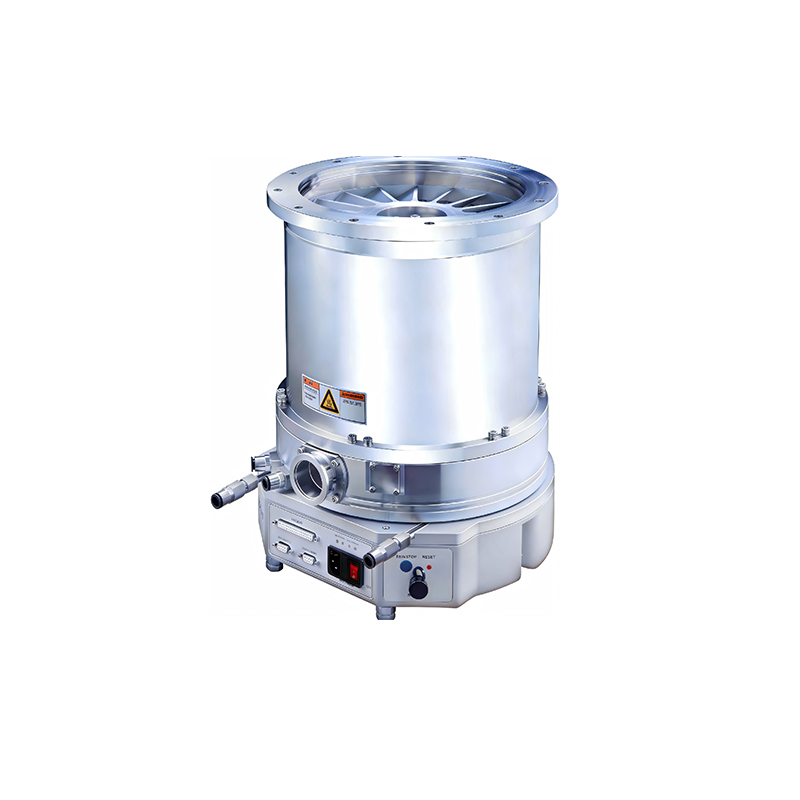

Magnetic levitation molecular pump

Energy Saving: Frictionless operation avoids frictional heat loss, reducing energy consumption by 30% compared to other types of products.
High Efficiency: Longer continuous working time, high airflow, and high pumping speed.
Flexibility: Compact structure meets the needs of smaller physical spaces; can be installed at any angle to suit various design requirements; rich expansion functions meet customer customization needs.

Application Areas: Photovoltaics, coating, vacuum, new materials, new energy.
$0.00
Model:
CXF-200/1401
CXF-200/1402
CXF-250/2301
CXF-250/2302
CXF-320/3001
CXF-320/3002
GET A QUOTE
  • Magnetic levitation molecular pump
  • Magnetic levitation molecular pump
  • Magnetic levitation molecular pump
  • Magnetic levitation molecular pump

  • Description

  • CXF-200/1401

  • CXF-200/1402

  • CXF-250/2301

  • CXF-250/2302

  • CXF-320/3001

  • CXF-320/3002

Performance Parameter:

Inlet Flange
DN200 ISO-F (with adapter, DN200 CF optional; DN200 LF optional)
Exhaust Flange
KF40
Pumping Speed (L/s)
N₂:1280, Ar:1100, He:880, H₂:560
Compression Ratio
N₂:>1E8, Ar:>1E8, He:>1E4, H₂:>1E3
Ultimate Pressure (Pa)
10⁻⁷ (Rubber seal)
Maximum Inlet Flow Rate (sccm)
1100
Protection Gas Inlet Flange (Optional)
KF10
Recommended Shield Gas Flow Rate
20
Maximum Allowable Magnetic Field Strength
Radial: 3, Axial: 15
Rated Rotation Speed (rpm)
30000
Startup Time (min)
≤6
Shutdown Time (min)
≤8
Cooling Method
Water Cooling
Cooling Water Flow Rate (L/min)
2
Recommended Cooling Water Temperature (℃)
20±5
Power Supply Voltage (V AC)
220±10%, 50Hz / 110±10%, 60Hz
Matching Power Supply Model
CXF D-1001
Recommended Insulation Resistance
≥16
Weight (kg)
51
Performance Parameter:

Inlet Flange
DN200 ISO-F (with adapter), DN200 CF (optional); DN200 LF (optional)
Exhaust Flange
KF40
Pumping Speed (L/s)
N₂:1400, Ar:1300, He:1100, H₂:820
Compression Ratio
N₂:>1E8, Ar:>1E8, He:>1E4, H₂:>1E3
Ultimate Pressure (Pa)
10⁻⁷ (Rubber seal)
Maximum Inlet Flow Rate (sccm)
1200
Protection Gas Inlet Flange (Optional)
KF10
Recommended Shield Gas Flow Rate
20
Maximum Allowable Magnetic Field Strength
Radial: 3, Axial: 15
Rated Rotation Speed (rpm)
33000
Startup Time (min)
≤7
Shutdown Time (min)
≤9
Cooling Method
Water Cooling
Cooling Water Flow Rate (L/min)
2
Recommended Cooling Water Temperature (℃)
20±5
Power Supply Voltage (V AC)
220±10%, 50Hz / 110±10%, 60Hz
Matching Power Supply Model
CXF D-1001
Recommended Insulation Resistance
≥16
Weight (kg)
51
Performance Parameter:

Inlet Flange
DN250 ISO-F (with adapter), DN250 CF (optional); DN250 LF (optional)
Exhaust Flange
KF40
Pumping Speed (L/s)
N₂:2150, Ar:1900, He:1500, H₂:850
Compression Ratio
N₂:>1E8, Ar:>1E8, He:>1E4, H₂:>1E3
Ultimate Pressure (Pa)
10⁻⁷ (Rubber seal)
Maximum Inlet Flow Rate (sccm)
1300
Protection Gas Inlet Flange (Optional)
KF10
Recommended Shield Gas Flow Rate
50
Maximum Allowable Magnetic Field Strength
Radial: 3, Axial: 15
Rated Rotation Speed (rpm)
27000
Startup Time (min)
≤8
Shutdown Time (min)
≤11
Cooling Method
Water Cooling
Cooling Water Flow Rate (L/min)
3
Recommended Cooling Water Temperature (℃)
20±5
Power Supply Voltage (V AC)
220±10%, 50Hz / 110±10%, 60Hz
Matching Power Supply Model
CXF D-1601
Recommended Insulation Resistance
≥22
Weight (kg)
60
Performance Parameter:

Inlet Flange
DN250 ISO-F (with adapter), DN250 CF (optional); DN250 LF (optional)
Exhaust Flange
KF40
Pumping Speed (L/s)
N₂:2360, Ar:2260, He:1980, H₂:1250
Compression Ratio
N₂:>1E8, Ar:>1E8, He:>1E4, H₂:>1E3
Ultimate Pressure (Pa)
10⁻⁷ (Rubber seal)
Maximum Inlet Flow Rate (sccm)
1500
Protection Gas Inlet Flange (Optional)
KF10
Recommended Shield Gas Flow Rate
50
Maximum Allowable Magnetic Field Strength
Radial: 3, Axial: 15
Rated Rotation Speed (rpm)
30000
Startup Time (min)
≤9
Shutdown Time (min)
≤12
Cooling Method
Water Cooling
Cooling Water Flow Rate (L/min)
3
Recommended Cooling Water Temperature (℃)
20±5
Power Supply Voltage (V AC)
220±10%, 50Hz / 110±10%, 60Hz
Matching Power Supply Model
CXF D-1601
Recommended Insulation Resistance
≥22
Weight (kg)
60
Performance Parameter:

Inlet Flange
DN320 ISO-F (with adapter)
Exhaust Flange
KF40
Pumping Speed (L/s)
N₂:2950, Ar:2750, He:2300, H₂:1100
Compression Ratio
N₂:>1E8, Ar:>1E8, He:>1E4, H₂:>1E3
Ultimate Pressure (Pa)
10⁻⁷ (Rubber seal)
Maximum Inlet Flow Rate (sccm)
2100
Protection Gas Inlet Flange (Optional)
KF10
Recommended Shield Gas Flow Rate
50
Maximum Allowable Magnetic Field Strength
Radial: 3, Axial: 15
Startup Time (min)
≤9
Shutdown Time (min)
≤12
Cooling Method
Water Cooling
Cooling Water Flow Rate (L/min)
3
Recommended Cooling Water Temperature (℃)
20±5
Power Supply Voltage (V AC)
220±10%, 50Hz / 110±10%, 60Hz
Matching Power Supply Model
CXF D-1601
Recommended Insulation Resistance
≥30
Weight (kg) (ISO-F)
76
Performance Parameter:

Inlet Flange
DN320 ISO-F (with adapter)
Exhaust Flange
KF40
Pumping Speed (L/s)
N₂:3260, Ar:2900, He:2550, H₂:1730
Compression Ratio
N₂:>1E8, Ar:>1E8, He:>1E4, H₂:>1E3
Ultimate Pressure (Pa)
10⁻⁷ (Rubber seal)
Maximum Inlet Flow Rate (sccm)
2400
Protection Gas Inlet Flange (Optional)
KF10
Recommended Shield Gas Flow Rate
50
Maximum Allowable Magnetic Field Strength
Radial: 3, Axial: 15
Rated Rotation Speed (rpm)
24000
Startup Time (min)
≤10
Shutdown Time (min)
≤14
Cooling Method
Water Cooling
Cooling Water Flow Rate (L/min)
3
Recommended Cooling Water Temperature (℃)
20±5
Power Supply Voltage (V AC)
220±10%, 50Hz / 110±10%, 60Hz
Matching Power Supply Model
CXF D-1601
Recommended Insulation Resistance
≥30
Weight (kg)
76
