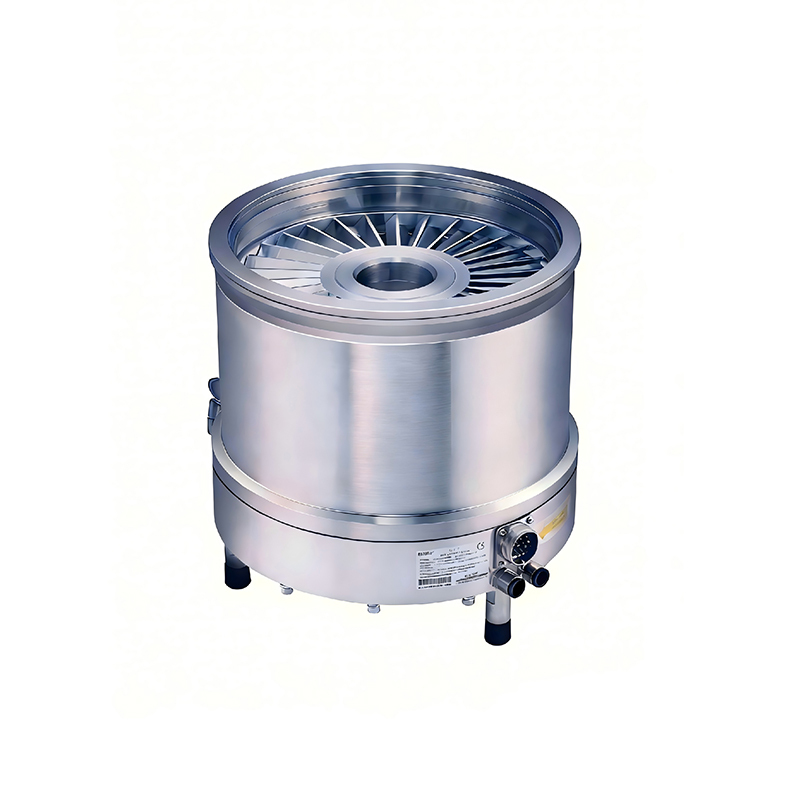

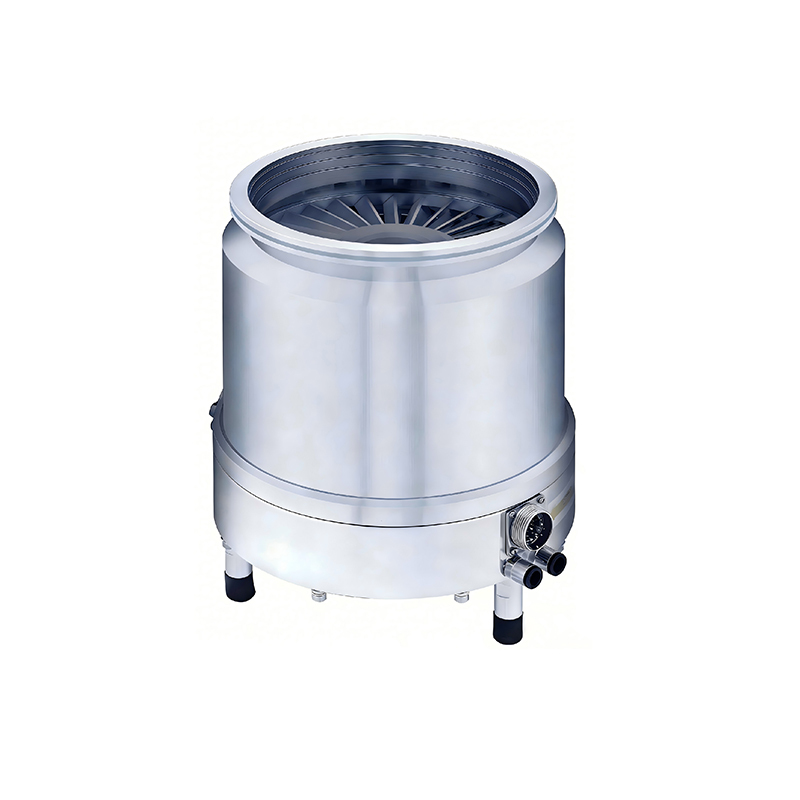

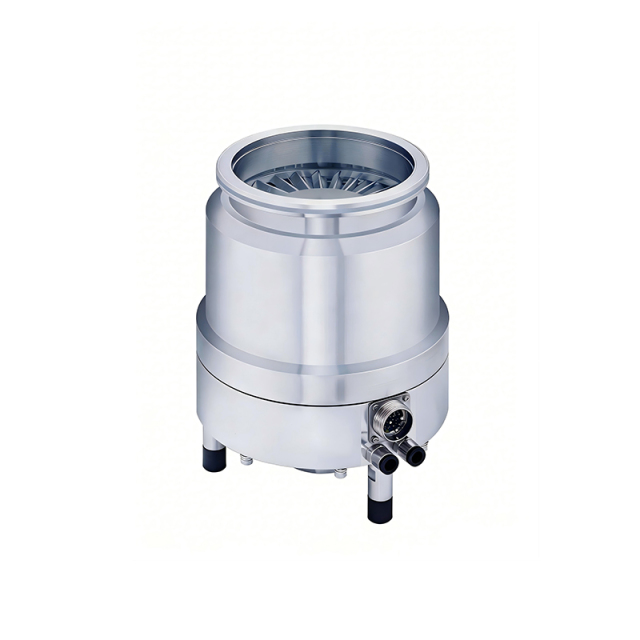

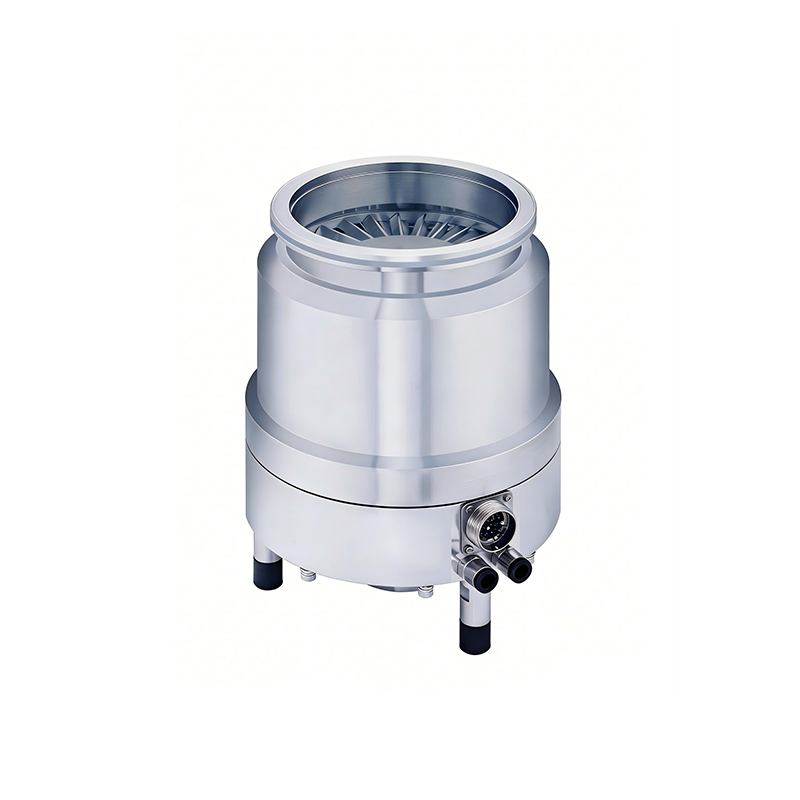

Grease-lubricated molecular pump

Product Features: Easy installation at any angle, facilitating system integration; compact structure.
Composite pumping structure maintains high pumping speed even under high forestage pressure.
High-strength rotor, suitable for complex industrial processes.
Easy to use, wide range of applications, and stable performance.

Application Areas: Scientific research, crystal oscillators, vacuum furnaces, electro-vacuum systems, new energy, new materials, vacuum drying, cryogenic refrigeration, and electronic devices.
$0.00
Model:
FF-100/110
FF-160/700
FF-160/700F
FF-200/1300
FF-200/1300F
FF-250/2000
  • Grease-lubricated molecular pump
  • Grease-lubricated molecular pump
  • Grease-lubricated molecular pump
  • Description

  • FF-100/110

  • FF-160/700

  • FF-160/700F

  • FF2-200/1300

  • FF-200/1300F

  • FF-250/2000

Performance Parameter:

Inlet Flange
DN100 CF / DN100 ISO-K
Exhaust Flange (ISO-KF)
DN25
Pumping Speed (L/s)
N₂:110, He:100, H₂:50, Ar:100
Compression Ratio
N₂:1E8, He:1E2, H₂:5E2, Ar:1E8
Ultimate Pressure (Pa)
CF: 6E-7 / ISO-K: 6E-6
Maximum Continuous Operating Pressure (Pa)
200
Maximum Operating Pressure (Pa)
N₂:300
Maximum Gas Flow (sccm)
N₂:300, He:240, H₂:180, Ar:110
Rated Rotation Speed (RPM)
42300
Startup Time (min)
≤3
Cooling Method
Water or Air Cooling (Air cooling optional when ambient temperature ≤32℃)
Cooling Water Flow Rate (L/min)
≥1
Cooling Water Temperature (℃)
≤25
Power Supply Voltage (V AC/DC)
220±22
Maximum Power (W)
≤300
Matching Power Supply Model
FD-110B
Recommended Foreline Pumping Speed (L/s)
2
Weight (kg)
8
Performance Parameter:

Inlet Flange
DN160 CF / DN160 ISO-K
Exhaust Flange (ISO-KF)
DN40
Pumping Speed (L/s)
N₂:700, He:580, H₂:260, Ar:680
Compression Ratio
N₂:1E9, He:1E7, H₂:6E6, Ar:1E9
Ultimate Pressure (Pa)
CF: 6E-8 / ISO-K: 6E-7
Maximum Continuous Operating Pressure (Pa)
300
Maximum Operating Pressure (Pa)
N₂:550
Maximum Gas Flow (sccm)
N₂:1400, He:1000, H₂:800, Ar:550
Rated Rotation Speed (RPM)
36000
Startup Time (min)
≤7
Cooling Method
Water Cooling
Cooling Water Flow Rate (L/min)
≥1
Cooling Water Temperature (℃)
≤25
Power Supply Voltage (V AC/DC)
DC24/AC220
Maximum Power (W)
≤500
Matching Power Supply Model
TCDP-II, FD-IIB, TD-II/TCP-II
Recommended Foreline Pumping Speed (L/s)
4–8
Weight (kg)
19 (LF) / 20.5 (CF)
Performance Parameter:

Inlet Flange
DN160 CF / DN160 ISO-K
Exhaust Flange (ISO-KF)
DN40
Pumping Speed (L/s)
N₂:700, He:580, H₂:260, Ar:680
Compression Ratio
N₂:1E9, He:1E7, H₂:6E6, Ar:1E9
Ultimate Pressure (Pa)
CF: 6E-8 / ISO-K: 6E-7
Maximum Continuous Operating Pressure (Pa)
300
Maximum Operating Pressure (Pa)
N₂:550
Maximum Gas Flow (sccm)
N₂:1400, He:1000, H₂:800, Ar:550
Rated Rotation Speed (RPM)
36000
Startup Time (min)
≤7
Cooling Method
Water or Air Cooling
Cooling Water Flow Rate (L/min)
≥1
Cooling Water Temperature (℃)
≤25
Power Supply Voltage (V AC/DC)
DC24/AC220
Maximum Power (W)
≤500
Matching Power Supply Model
TCDP-II, FD-IIB, TD-II/TCP-II
Recommended Foreline Pumping Speed (L/s)
4–8
Weight (kg)
23 (LF) / 24.5 (CF)
Performance Parameter:

Inlet Flange
DN200 CF / DN200 ISO-K
Exhaust Flange (ISO-KF)
DN40
Pumping Speed (L/s)
N₂:1300, He:1000, H₂:480, Ar:1250
Compression Ratio
N₂:1E9, He:1E4, H₂:6E3, Ar:1E9
Ultimate Pressure (Pa)
CF: 6E-7 / ISO-K: 6E-6
Maximum Continuous Operating Pressure (Pa)
240
Maximum Operating Pressure (Pa)
N₂:600
Maximum Gas Flow (sccm)
N₂:2500, He:1850, H₂:1450, Ar:950
Rated Rotation Speed (RPM)
24000
Startup Time (min)
≤9
Cooling Method
Water Cooling
Cooling Water Flow Rate (L/min)
≥1
Cooling Water Temperature (℃)
≤25
Power Supply Voltage (V AC/DC)
DC24/AC220
Maximum Power (W)
≤500
Matching Power Supply Model
TCDP-II, FD-IIB, TD-II/TCP-II
Recommended Foreline Pumping Speed (L/s)
15
Weight (kg)
29 (LF) / 31 (CF)
Performance Parameter:

Inlet Flange
DN200 CF / DN200 ISO-K
Exhaust Flange (ISO-KF)
DN40
Pumping Speed (L/s)
N₂:1300, He:1000, H₂:480, Ar:1250
Compression Ratio
N₂:1E9, He:1E4, H₂:6E3, Ar:1E9
Ultimate Pressure (Pa)
CF: 6E-7 / ISO-K: 6E-6
Maximum Continuous Operating Pressure (Pa)
240
Maximum Operating Pressure (Pa)
N₂:600
Maximum Gas Flow (sccm)
N₂:2500, He:1850, H₂:1450, Ar:950
Rated Rotation Speed (RPM)
24000
Startup Time (min)
≤9
Cooling Method
Water or Air Cooling
Cooling Water Flow Rate (L/min)
≥1
Cooling Water Temperature (℃)
≤25
Power Supply Voltage (V AC/DC)
DC24/AC220
Maximum Power (W)
≤500
Matching Power Supply Model
TCDP-II, FD-IIB, TD-II/TCP-II
Recommended Foreline Pumping Speed (L/s)
15
Weight (kg)
33 (LF) / 35 (CF)
Performance Parameter:

Inlet Flange
DN250 CF / DN250 ISO-K
Exhaust Flange (ISO-KF)
DN50
Pumping Speed (L/s)
N₂:2000, He:1600, H₂:740, Ar:1900
Compression Ratio
N₂:1E8, He:1E4, H₂:6E3, Ar:1E9
Ultimate Pressure (Pa)
CF: 6E-7 / ISO-K: 6E-6
Maximum Continuous Operating Pressure (Pa)
200
Maximum Operating Pressure (Pa)
N₂:650
Maximum Gas Flow (sccm)
N₂:3200, He:2400, H₂:1850, Ar:1200
Rated Rotation Speed (RPM)
24000
Startup Time (min)
≤9
Cooling Method
Water Cooling
Cooling Water Flow Rate (L/min)
≥1
Cooling Water Temperature (℃)
≤25
Power Supply Voltage (V AC/DC)
DC24/AC220
Maximum Power (W)
≤750
Matching Power Supply Model
TCDP-II, FD-IIB, TD-II/TCP-II
Recommended Foreline Pumping Speed (L/s)
15
Weight (kg)
32 (LF) / 35 (CF)
