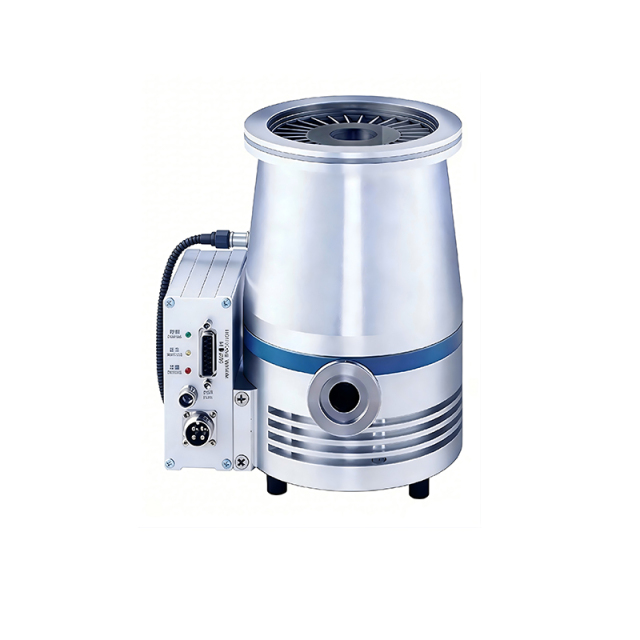

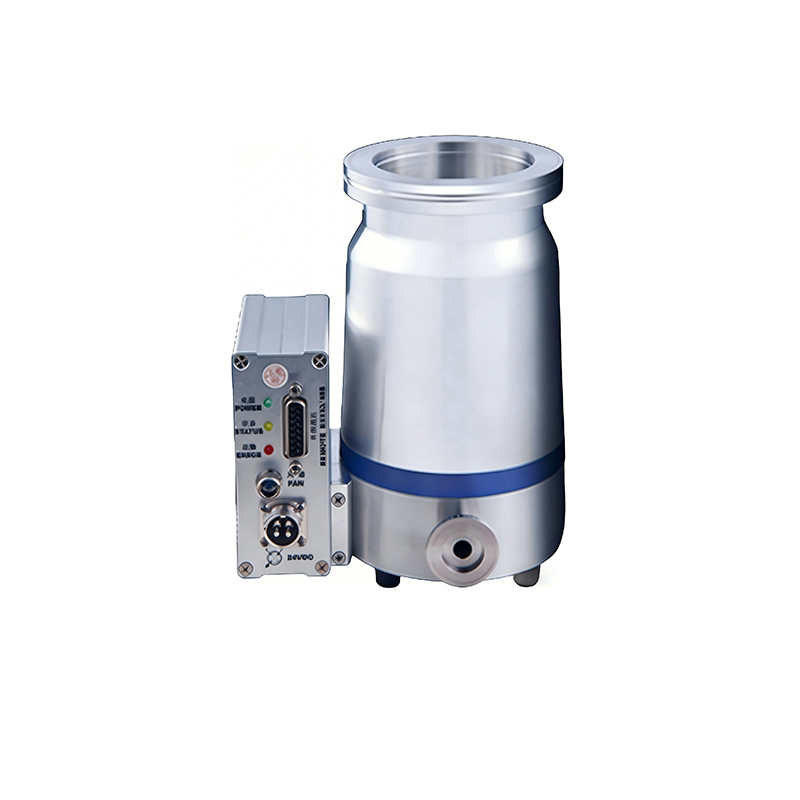

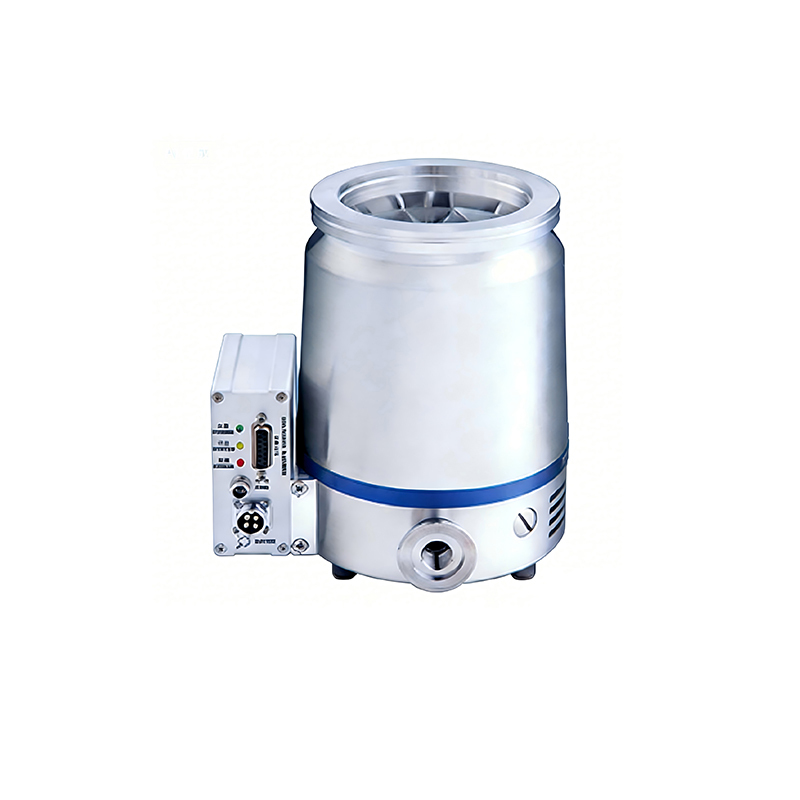

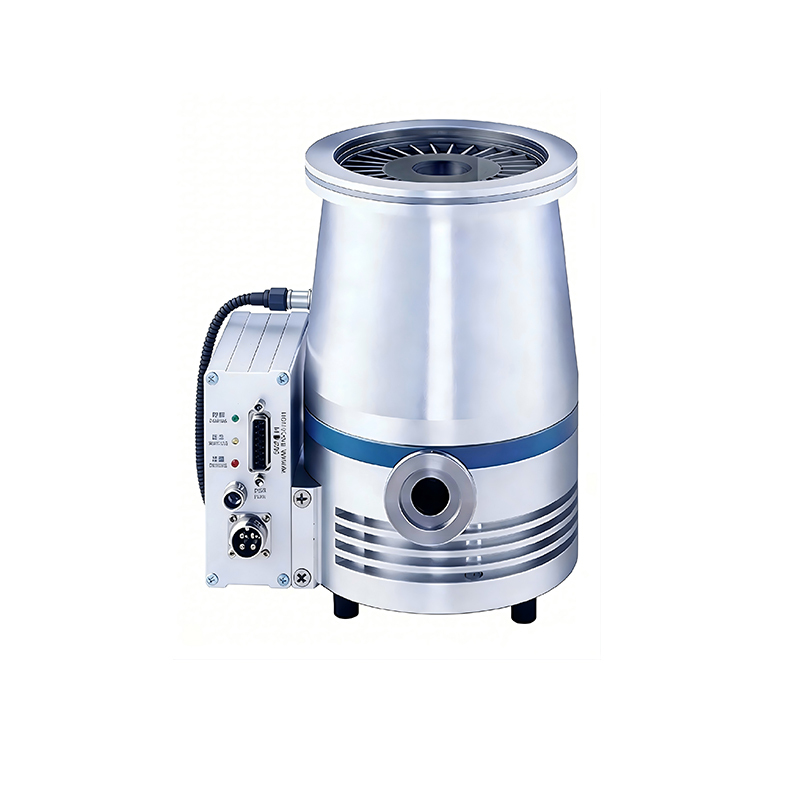

Name: Instrument pump
Brand: SAWA VACUUM
Availability: InStock
Rating: 5 (1 reviews)

Performance Parameter:

Inlet Flange (ISO-KF)	DN40	Exhaust Flange (ISO-KF)	DN16
Pumping Speed (L/s)	N₂:20, He:18, H₂:11, Ar:25	Compression Ratio	N₂:1E6, He:6E2, H₂:1E2, Ar:1E6
Ultimate Pressure (Pa)	ISO-K ≤ SE-4	Maximum Continuous Operating Pressure (Pa)	500
Maximum Operating Pressure (Pa)	N₂:1000	Maximum Gas Flow (sccm)	N₂:23, He:18, H₂:12, Ar:28
Rated Rotation Speed (RPM)	36000	Startup Time (min)	≤3
Cooling Method	Air Cooling	Power Supply Voltage (V AC/DC)	DC24/AC220
Maximum Power (W)	70	Matching Power Supply Model	TD-25/TCP-100/TC-100
Recommended Foreline Pumping Speed (L/s)	0.5–1	Weight (kg)	3

Performance Parameter:

Inlet Flange	DN63 CF / DN63 ISO-K	Exhaust Flange (ISO-KF)	DN16
Pumping Speed (L/s)	N₂:82, He:87, H₂:58, Ar:44	Compression Ratio	N₂:1E8, He:1E3, H₂:1E3, Ar:1E8
Ultimate Pressure (Pa)	CF:8E-7 / ISO-K:7E-6	Maximum Continuous Operating Pressure (Pa)	200
Maximum Operating Pressure (Pa)	N₂:650	Maximum Gas Flow (sccm)	N₂:35, He:30, H₂:19, Ar:38
Rated Rotation Speed (RPM)	72000	Startup Time (min)	≤3
Cooling Method	Water or Air Cooling	Cooling Water Flow Rate (L/min)	1
Cooling Water Temperature (℃)	≤25	Power Supply Voltage (V AC/DC)	DC24/AC220
Maximum Power (W)	90	Matching Power Supply Model	TD-80/TCP-100/TC-100
Recommended Foreline Pumping Speed (L/s)	0.5–2	Weight (kg)	4.8 (ISO-K) / 6.5 (CF)

Performance Parameter:

Inlet Flange	DN100 CF / DN100 ISO-K	Exhaust Flange (ISO-KF)	DN25
Pumping Speed (L/s)	N₂:140, He:130, H₂:75, Ar:145	Compression Ratio	N₂:1E7, He:6E3, H₂:1E3, Ar:1E7
Ultimate Pressure (Pa)	CF: 2E-7 / ISO-K: 2E-6	Maximum Continuous Operating Pressure (Pa)	220
Maximum Operating Pressure (Pa)	N₂:500	Maximum Gas Flow (sccm)	N₂:135, He:80, H₂:52, Ar:143
Rated Rotation Speed (RPM)	51000	Startup Time (min)	≤3
Cooling Method	Water or Air Cooling	Cooling Water Flow Rate (L/min)	1
Cooling Water Temperature (℃)	≤25	Power Supply Voltage (V AC/DC)	DC24/AC220
Maximum Power (W)	90	Matching Power Supply Model	TD-150/TCP-100/TC-100
Recommended Foreline Pumping Speed (L/s)	2	Weight (kg)	6.0 (ISO-K) / 8.6 (CF)

Performance Parameter:

Inlet Flange	DN100 CF / DN100 ISO-K	Exhaust Flange (ISO-KF)	DN25
Pumping Speed (L/s)	N₂:295, He:250, H₂:200, Ar:305	Compression Ratio	N₂:1E9, He:1E6, H₂:1E5, Ar:1E9
Ultimate Pressure (Pa)	CF: 5E-7 / ISO-K: 2.5E-6	Maximum Continuous Operating Pressure (Pa)	500
Maximum Operating Pressure (Pa)	N₂:700	Maximum Gas Flow (sccm)	N₂:120, He:50
Rated Rotation Speed (RPM)	51000	Startup Time (min)	≤4
Cooling Method	Water or Air Cooling	Cooling Water Flow Rate (L/min)	1
Cooling Water Temperature (℃)	≤25	Power Supply Voltage (V AC/DC)	DC24/AC220
Maximum Power (W)	220	Matching Power Supply Model	TD-300/TCP-240/TC-100
Recommended Foreline Pumping Speed (L/s)	1–3	Weight (kg)	8.5 (ISO-K) / 11 (CF)
