Home > All Collections > Leak Detectors > Helium mass spectrometer leak detector
  • Helium mass spectrometer leak detector
  • Helium mass spectrometer leak detector
  • Helium mass spectrometer leak detector
  • Helium mass spectrometer leak detector

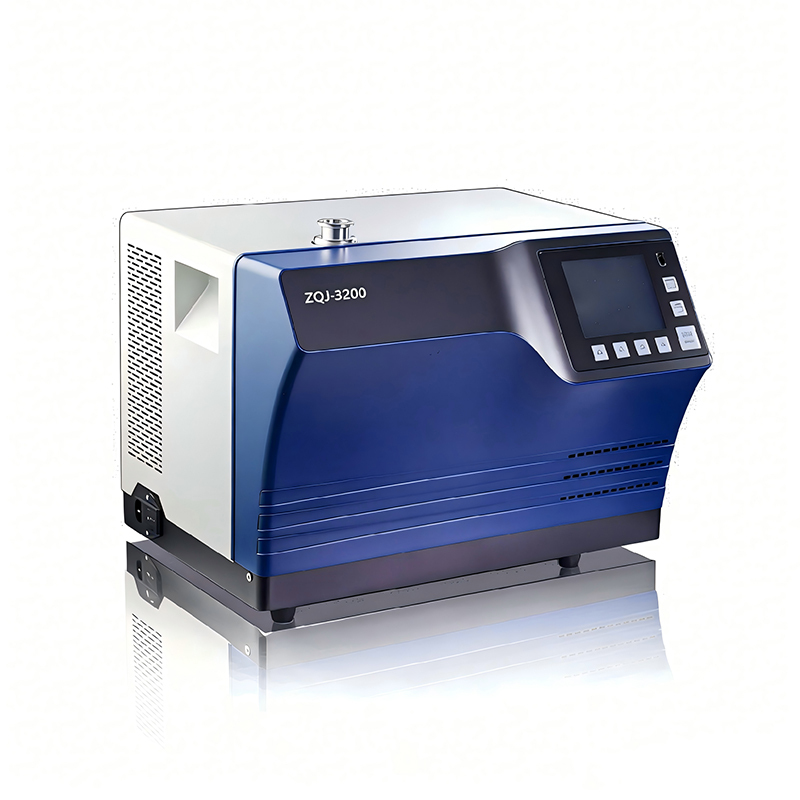

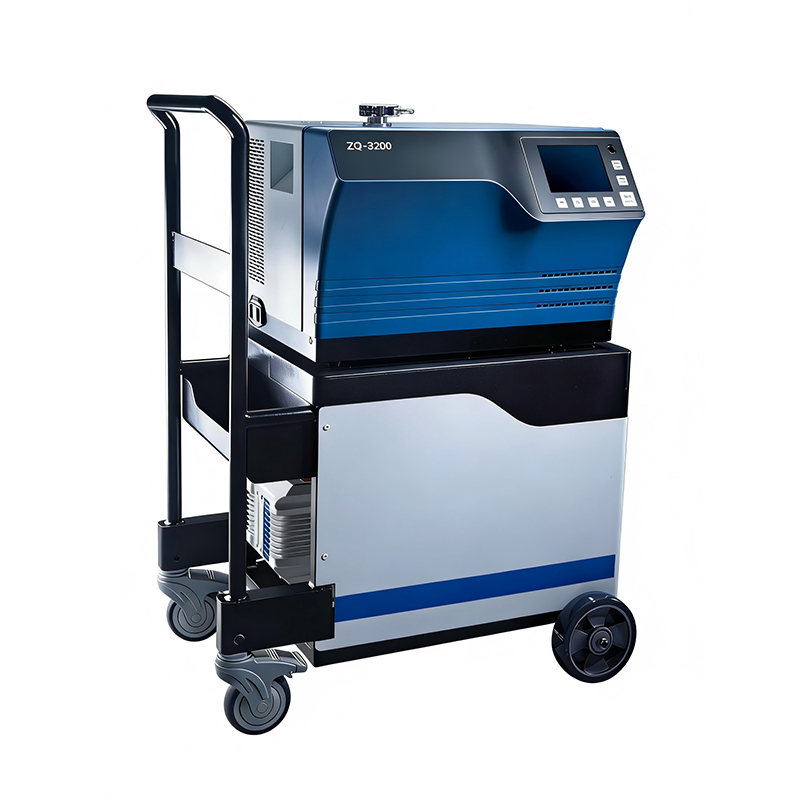

Helium mass spectrometer leak detector

Product Features:
Easy to Use: One-button operation, PLC control, leak detection and venting modes, simple to operate.
Reliable Performance: High-performance mass spectrometry technology, robust and durable.
Designed for Various Working Conditions: Easy to move, all-steel structure, pressure and shock resistant.
High Cost-Effectiveness: Molecular pump system, semi-automatic control, automatic vacuum protection, high cost-effectiveness.

Applications: Cryogenic refrigeration, automotive industry, power appliances, vacuum pumps.
$0.00
Model:
ZQJ-230D
ZQJ-230EK
ZQJ-2000
ZQJ-2300
ZQJ-3200
GET A QUOTE
  • Helium mass spectrometer leak detector
  • Helium mass spectrometer leak detector

  • Description

  • ZQJ-230D

  • ZQJ-230EK

  • ZQJ-2000

  • ZQJ-2300

  • ZQJ-3200

Performance Parameter:

Minimum Detectable Leak Rate (Pa·m³/s)
<5E-11
Leak Detection Range (Pa·m³/s)
2E-11 ~ 9.8E-5
Maximum Inlet Pressure (Pa)
20
Response Time (s)
≤3
Startup Time (min)
<8
Power Supply
220V AC±10%, 50Hz, 8A
Working Environment
Temperature 5~35℃, Relative Humidity ≤80%
External Dimensions (L×W×H, mm)
540×600×950
Weight (kg)
82
Performance Parameter:
Maximum Inlet Pressure (Pa)
5000
Response Time (s)
<3
Startup Time (min)
<8
Power Supply
220V AC±10%, 50Hz, 10A
External Dimensions (L×W×H, mm)
575×650×1060
Weight (kg)
80
Performance Parameter:

Leak Detection Range (Pa·m³/s)
1E-11 ~ 1E-5
Minimum Detectable Leak Rate (Pa·m³/s)
<2E-11
Maximum Inlet Pressure (Pa)
1000
Response Time (s)
≤2
Startup Time (min)
<8
Power Supply
220V AC±10%, 50Hz, 8A
Working Environment
Temperature 5~45℃, Relative Humidity ≤80%
External Dimensions (L×W×H, mm)
645×450×950
Weight (kg)
80
Performance Parameter:

Minimum Detectable Leak Rate (Pa·m³/s)
<2E-11
Leak Detection Range (Pa·m³/s)
1E-11 ~ 1E-5
Maximum Inlet Pressure (Pa)
1000
Response Time (s)
≤2
Startup Time (min)
<8
Power Supply
220V AC±10%, 50Hz, 5A
Working Environment
Temperature 5~45℃, Humidity ≤80%
External Dimensions (L×W×H, mm)
500×354×397
Weight (kg)
≈36
Performance Parameter:

Minimum Detectable Leak Rate (Vacuum Mode, Pa·m³/s)
5E-13
Leak Detection Range (Pa·m³/s)
5E-13 ~ 1E-1
Maximum Detectable Pressure (Pa)
2500
Response Time (s)
≤1
Startup Time (min)
<3
Product Dimensions (L×W×H, mm)
543×421×359 (Desktop Type) / 733×528×935 (Mobile Type)
Weight (kg)
55 (Desktop Type) / 109 (Mobile Type)
